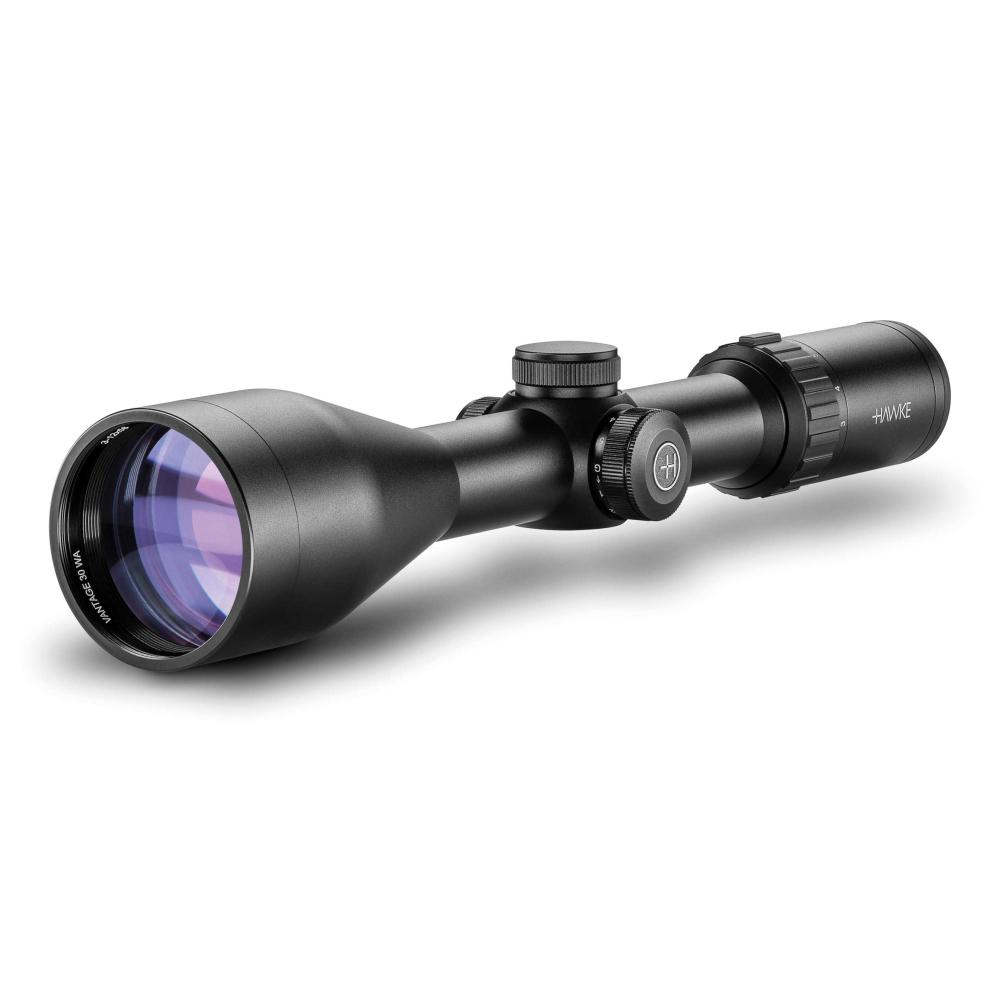

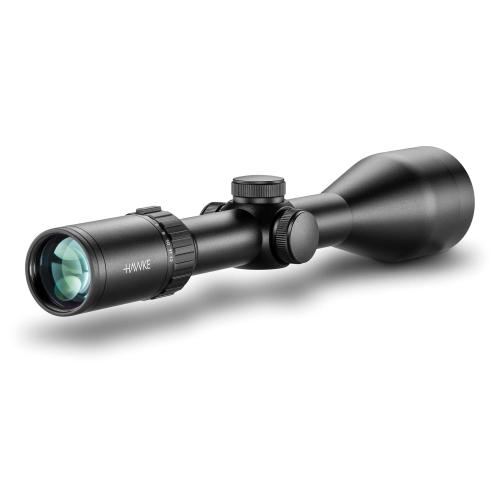

Vantage 30 WA 3-12-x56 IR (L4a)

An extensive range of scopes to suit all calibres and disciplines.

All Vantage riflescopes feature our H2 optics in a variety of configurations.

Capped Low-Profile Turrets

30mm Mono-tube chassis

Wide Angle

Illumination

11 layer Fully Multi-Coated lenses

High torque zoom ring

Fast focus eyebell

L4A Dot Reticle (2 MOA)

A variant of the classic L4 reticle, the L4A Dot uses a more open outer post design to keep more of the target visible while aiming. 30? spacing from center to post at 100yds when on 4x magnification. This is equivalent to 83cm at 100m.

Objective Lens            56mm

Reticle                         L4A Dot

Parallax                       Fixed

Magnification              3 - 12x

Optical System            System H2

Scope Tube                 30mm

Illumination                 5 Levels - Red/Green

Field of View              43.8 - 11.4ft @100yds

Field of View (°)         8.3 - 2.2

Eye Relief                   3.5in

PX/Focus                    100yds

Turret Caps                 YES

Click Value                 1? 4MOA

Elevation Turret Clicks (max)  100 MOA

Windage Turret Clicks (max)              100 MOA

Exit Pupil                    0.74 - 0.19?

Ocular Type                Fast Focus

Power Selector            Knurled Posi-Grip

Lens Coating               Fully Multi-Coated - 11 Layers

Focal Plane                  SFP (Second Focal Plane)

Length                         13.4in

Weight                         23.6oz
