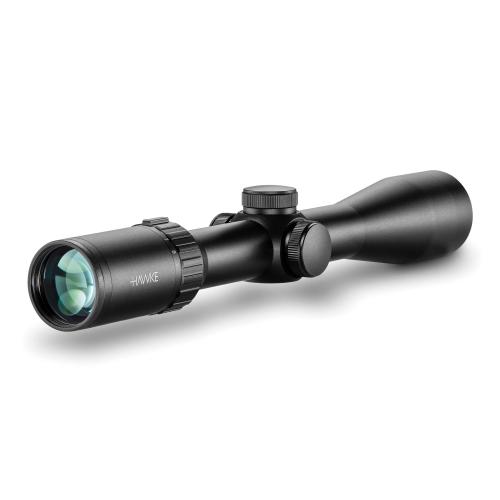

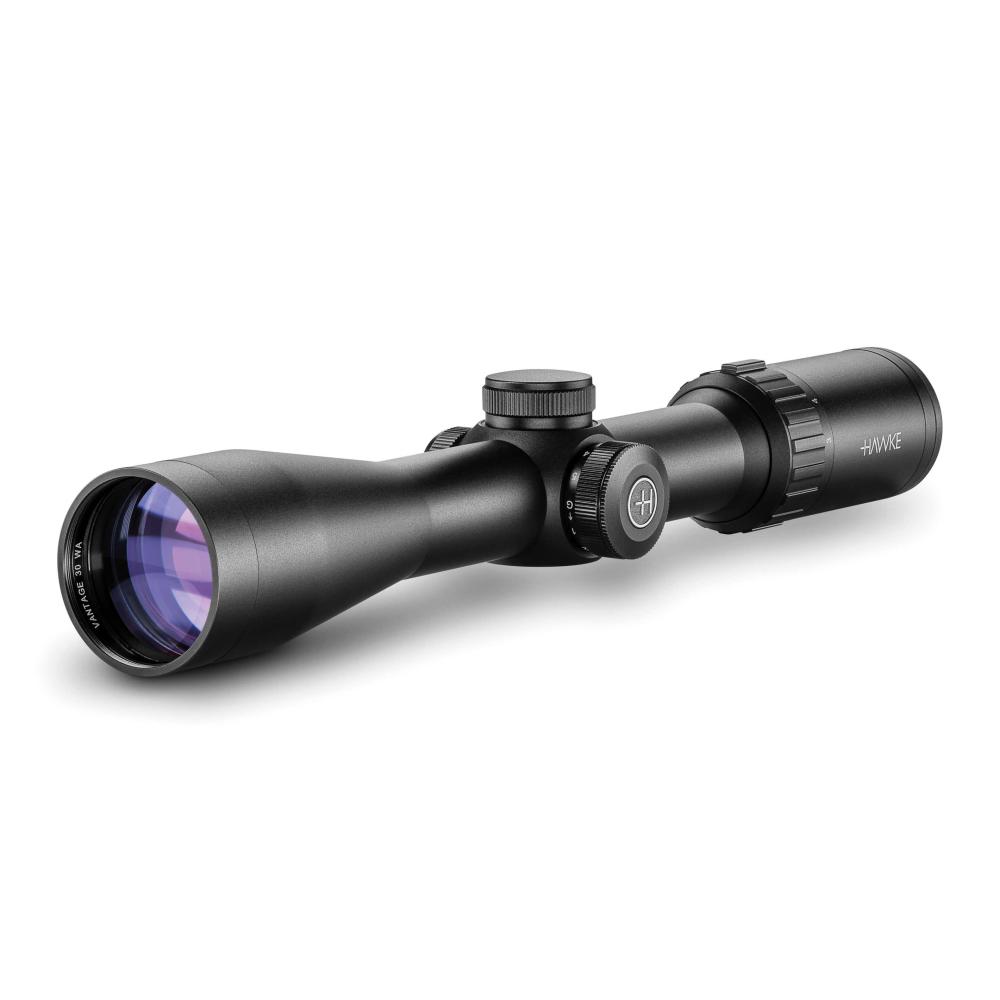

Vantage 30 WA 3-9x42 IR (L4a)
An extensive range of scopes to suit all calibers and disciplines.
All Vantage riflescopes feature our H2 optics in a variety of configurations.
IR models feature precision glass etched reticles with multi-stage illumination in both red and green.
- Capped Low-Profile Turrets
- 30mm Mono-tube chassis
- Wide Angle
- Illumination
- 11 layer Fully Multi-Coated lenses
- High torque zoom ring
- Fast focus eyebell
A variant of the classic L4 reticle, the L4A Dot uses a more open outer post design to keep more of the target visible while aiming. 30? spacing from center to post at 100yds when on 4x magnification. This is equivalent to 83cm at 100m.
This design also makes it suitable for European shooters who might prefer a metric set of figures and therefore to zero their rifle in for 100 metres on the centre crosshair and use the lower aim points for 200, 300, 400 and 500 metres. A useful tip: at 8x magnification, the thick posts to the right and left of the centre dot would bracket the body length of a Roe deer at 100yds; a popular sized animal to hunt with this type of reticle.
Objective Lens 42mm
Reticle L4A Dot
Parallax Fixed
Magnification 3-9x
Optical System System H2
Scope Tube 30mm
Illumination 5 Levels – Red/Green
Field of View (°) 42.2 -13.1 ft @ 100yds (8° - 2.5°)
Eye Relief 3.5in
PX/Focus 100yds
Turret Caps Capped
Click Value ¼ MOA
Elevation Turret Clicks (max) 120 MOA
Windage Turret Clicks (max) 120 MOA
Exit Pupil 0.55– 0.19”
Ocular Type Fast Focus
Power Selector Knurled Posi-Grip
Lens Coating Fully Multi-Coated – 11 Layers
Focal Plane SFP (Second Focal Plane)
Length 13?
Weight 17.5oz
